Summer Sale

For the summer of 2015 Assistance Audio will be offering a 10% discount on all cone speakers sold.

Refurbished BMS 4592-8s

Assistance Audio has purchased used casings of 4592-8 mid only. We have replaced the used mid range diaphragm (3.5 inch) with a new one and affixed a new high diaphragm (1.75 inch) assembly onto the exsisting 4592mid. Making a semi used 4592. Both diaphragms are new and in working order. Main body of the driver is used.

Assistance Audio is now selling these refurbished 4592s for less then a brand new BMS 4592. Available in 8 Ohm only.


New Items from BMS on sale in 2014

4599

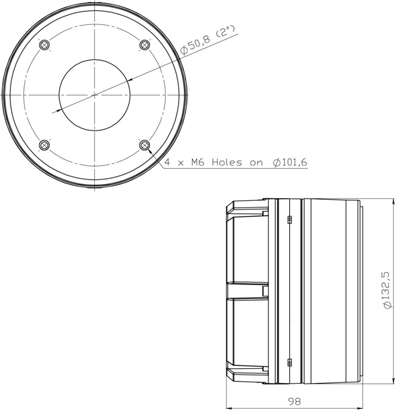

BMS 4599 2" Dual Diaphragm Driver

The BMS 4599 dual diaphragm driver incorporates two identical 3.5" concentric annular ring diaphragms connected to a common 2" throat providing extremely high acoustical output.
The patented design of the BMS 4599 is a result of extensive dedicated research and development providing dramatic improvement in efficiency, power handling, dynamic response and clarity. In fact the double voice coil/diaphragm assembly provides 6 dB higher maximal SPL compared to an equal single voice coil driver.
Two large annular diaphragms cover the frequency range 200 Hz to 9000 Hz with a smooth, linear response. The high diaphragm excrusion of maximal +/- 0.8 mm results in high output and increased power handling up to 2600 W peak.

Nominal impedance: 2x 8 or 2x 16 Ohm
Power capacity: 400 W (2600 W peak)
Sensitivity 1w/1m: 123 dB on a 40 x 20 waveguide
Frequency Range: 200-9000 Hz

CIARE Items for sale by Assistance Audio

These are new old stock of CIARE from when we used to sell that brand.


Model Description
Quantity
Price
1.26 NDTW Neodymium magnet tweeter w/ 1" VC, 20 Watts 16
$66.00
6.38 NDMR 6" Neodymium magnet Speaker w/ 1.5" VC, 80 Watts 6
$40.00
10.75 NDW 10" Neodymium magnet Speaker w/ 3" VC, 300 Watts 2
$80.00
12.00 W1 12" Ceramic magnet Speaker w/ 4" VC, 500 Watts 8
$80.00
10-2.5 NDC 10" Neodymium magnet Speaker w/ 2.5" VC, 500 Watts
12
$80.00
12-4 NDH 12" Neodymium magnet Speaker w/ 4" VC, 1000 Watts
11
$115.00
18-3 NDH 18" Neodymium magnet Speaker w/ 3" VC, 1000 Watts
2
$125.00
12.64 NDW *USED* 12" Neodymium magnet Speaker w/ 2.5" VC, 300 Watts *USED*
9
$60.00



New Items from BMS on sale in 2013



Introducing the 4508 8" Dual Diaphragm Coaxial Planar Wave Driver

The BMS 4508ND dual diaphragm coaxial planar wave driver radiates a coherent planar wave front from a rectangular piston without internal diffraction for superior dispersion control and high fidelity sound. The driver is in fact a 2-way system emplying two concentric annular ring diaphragms. Each driver covers smaller frequency range for increased power handling, high dynamic and extremely low distortion.

The 4508ND is optimized for 0 to 15 degrees vertical dispertion and allows a horizontal coverage up to 120 degrees depending on the waveguide used. The unique design allows perfect acoustical coupling of individual units with excellent phase coherence and perfect time alignment to create a virtually continuous line source.

Rectangular piston measures: 8"x3/4"
Power Handling: 150/80 watts
Sensitivity: 115 dB (1w/1m)
Freq Range: 300-22,000 Hz
Voice coil diameter: 3.5”/1.75”

______________________________________________________________________________________________________________________________________

BMS 5CN140 Neodymium Coaxial Transducer

Size: 5”
Power Handling: 120/60 watts
Sensitivity: 90 dB (1w/1m)
Freq Range: 80-30,000 Hz
Voice coil diameter: 1.5”/1.5”



______________________________________________________________________________________________________________________________________

BMS 5CN160 Neodymium Coaxial Transducer

Size: 5”
Power Handling: 130/25 watts
Sensitivity: 90 dB (1w/1m)
Freq Range: 80-20,000 Hz
Voice coil diameter: 1.5”/1”

______________________________________________________________________________________________________________________________________

BMS 6CN160 Neodymium Coaxial Transducer

Size: 6.5”
Power Handling: 130/25 watts
Sensitivity: 93 dB (1w/1m)
Freq Range: 80-20,000 Hz
Voice coil diameter: 1.5”/1”

______________________________________________________________________________________________________________________________________

BMS 5C160 Coaxial Transducer

Size: 5”
Power Handling: 130/25 watts
Sensitivity: 90 dB (1w/1m)
Freq Range: 80-20,000 Hz
Voice coil diameter: 1.5”/1”
Magnet Material: LF Ferrite HF Neodymium



BMS 6C160 Coaxial Transducer

Size: 6.5”
Power Handling: 130/25 watts
Sensitivity: 90 dB (1w/1m)
Freq Range: 80-20,000 Hz
Voice coil diameter: 1.5”/1”
Magnet Material: LF Ferrite HF Neodymium
