Line Array

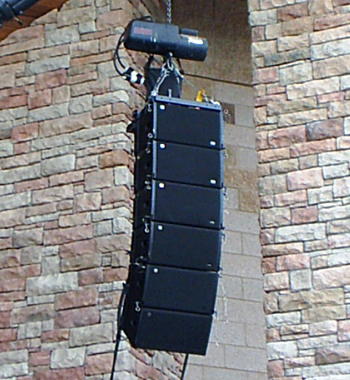

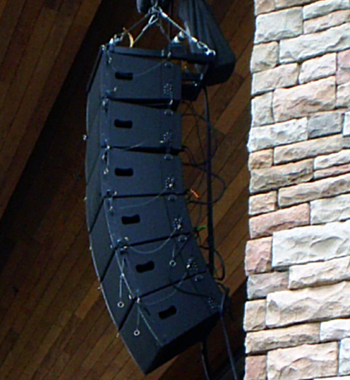

The Coda Audio LA5A is an ultra compact, two-way self-powered line array system, designed for an wide range of venues where high fidelity sound and outstanding intelligibility is required. The system contains four BMS 5" neodymium ultra low distortion cone speakers and two BMS 4510ND, 4" neodymium planar wave drivers. The use of high efficiency class D amplifier for the low and mosfet amp for the high frequency ensure small size, reduced weight and superb sonic performance. The integrated control electronics includes optical limiters for each channel, 24 dB phase-aligned asymmetrical crossovers, all pass filters, EQ’s etc to provide a perfect match between amplifiers and loudspeakers for optimum acoustic output and reliability. The integrated rigging system allows quick and easy flying or ground stacking. Arrays may be build straight or curved in various angular to obtain the desired vertical coverage. The fact that the LA5A is ultra compact and light reduces manpower and transport. The LA5A gives Assistance Audio a flexible, plug and play system for an wide range of applications. Download Specifications:   LA5A.pdf - 86.13 KB
